Composed Serialization

Warning: code ahead!

One of the annoying issues when handling bad or legacy data-formats, is getting the marshaling work with your own nice structures. The thing you want to read in might be a complicated mess of SOAP, but you want something nicer.

Let’s see the problem in action, here’s a “simple” response from a SOAP endpoint:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22


<Envelope xmlns:s='http://schemas.xmlsoap.org/soap/envelope/'>
  <Body>
    <GetAllColumnsResponse xmlns='http://zzz.com/'>
      <GetAllColumnsResult xmlns:i='http://www.w3.org/2001/XMLSchema-instance'>
        <ListColumnGroup1>
          <columns>
            <ListColumn1>
              <dataType>urn:zzz:list-type:string</dataType>
              <displayText>Project Name</displayText>
              <uri>urn:zzz:project-list-column:name</uri>
            </ListColumn1>
            <ListColumn1>
              <dataType>urn:zzz:list-type:string</dataType>
              <displayText>Code</displayText>
              <uri>urn:zzz:project-list-column:code</uri>
            </ListColumn1>
          </columns>
        </ListColumnGroup1>
      </GetAllColumnsResult>
    </GetAllColumnsResponse>
  </Body>
</Envelope>

SOAP, with some data redacted.

So, how do we handle this mess?

Obviously we need to somehow reflect this structure in our code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31


type AllColumnsResponse struct {
	Columns []Column `json:"columns"`
}

type Column struct {
	DisplayText string `json:"displayText"`
	DataType    string `json:"dataType"`
	URI         string `json:"uri"`
}

func (response *AllColumnsResponse) Spec() soap.Spec {
	return soap.Tag("Envelope",
		soap.Tag("Body",
			soap.Tag("GetAllColumnsResponse",
				soap.Tag("GetAllColumnsResult",
					soap.Tag("ListColumnGroup1",
						soap.TagList("columns", &response.Columns),
					),
				),
			),
		),
	)
}

func (column *Column) Spec() soap.Spec {
	return soap.Tag("ListColumn1",
		soap.String("dataType", &column.DataType),
		soap.String("displayText", &column.DisplayText),
		soap.String("uri", &column.URI),
	)
}

Defining how to marshal our structures.

This looks quite nice already … but we still need to implement the soap package.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29


package soap

import "encoding/xml"

type Speced interface {
	Spec() Spec
}

type Spec interface {
	Speced
	Encode() *Node
	Decode(*Node)
}

type Node struct {
	XMLName xml.Name
	Content []byte `xml:",innerxml"`
	Nodes   []Node `xml:",any"`
}

func Parse(content []byte) (*Node, error) {
	var node Node
	err := xml.Unmarshal(content, &node)
	return &node, err
}

func (node *Node) Encode() ([]byte, error) {
	return xml.MarshalIndent(node, "", "\t")
}

Implementing the core.

Here we define a Node for parsing arbitrary xml structures. We have Spec types that can encode and decode from this Node structure. Strictly speaking Node isn’t actually required. We could just as well implement the Spec types as Marshalers. In this case having a separate Node tree made things easier.

Here are two types TagSpec and StringSpec. One for walking the Node tree and the other for marshaling a string.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67


package soap

type TagSpec struct {
	Name     string
	Children []Speced
}

func Tag(name string, children ...Speced) Spec {
	return &TagSpec{
		Name:     name,
		Children: children,
	}
}

func (spec *TagSpec) Spec() Spec { return spec }

func (spec *TagSpec) Encode() *Node {
	node := &Node{}
	node.XMLName.Local = spec.Name
	for _, child := range spec.Children {
		node.Nodes = append(node.Nodes, *child.Spec().Encode())
	}
	return node
}

func (spec *TagSpec) Decode(node *Node) {
	if spec.Name != node.XMLName.Local {
		panic("invalid name expected " + spec.Name + " got " + node.XMLName.Local)
	}
	if len(spec.Children) != len(node.Nodes) {
		panic("invalid number of children")
	}
	for i, child := range spec.Children {
		child.Spec().Decode(&node.Nodes[i])
	}
}

type StringSpec struct {
	Name  string
	Value *string
}

func String(name string, value *string) Spec {
	return &StringSpec{
		Name:  name,
		Value: value,
	}
}

func (spec *StringSpec) Spec() Spec { return spec }

func (spec *StringSpec) Encode() *Node {
	node := &Node{}
	node.XMLName.Local = spec.Name
	node.Content = []byte(*spec.Value)
	return node
}

func (spec *StringSpec) Decode(node *Node) {
	if spec.Name != node.XMLName.Local {
		panic("invalid name expected " + spec.Name + " got " + node.XMLName.Local)
	}
	if len(node.Nodes) != 0 {
		panic("expected no children for child spec")
	}
	*spec.Value = string(node.Content)
}

Implementing basic types.

We have TagSpec for pattern matching on names and StringSpec parsing into a string. Notice how the StringSpec writes to a string pointer, rather than a string.

Finally to wire all of this together:

1
2
3


node, _ := soap.Parse([]byte(data))
var response AllColumnsResponse
response.Spec().Decode(node)

full code

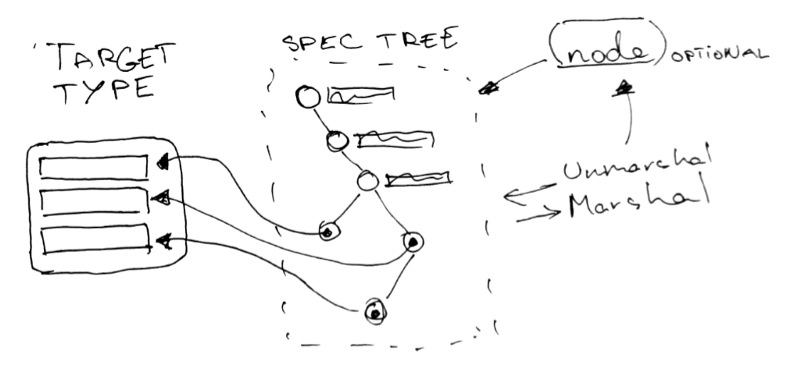

The basic idea is to create a separate spec structure that has pointers to the target structure and then let the “spec” type handle all the marshaling/parsing, but write the result into the “target” structure.

This of course can be made to handle very complicated structures:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


func (d *asnSignerInfo) marshaler() ber.Marshaler {
	return ber.Sequence{
		ber.Check{ber.Universal, ber.TagInteger, ber.Int64{&d.Version}},
		ber.Choice{
			ber.Check{ber.Universal, ber.TagSequence, &d.Issuer},
			ber.Check{ber.Context, 0, ber.OctetString{&d.SubjectKeyId}},
		},
		ber.Check{ber.Universal, ber.TagSequence, (*asnAlgorithmIdentifier)(&d.DigestAlgorithm)},
		ber.Optional{ber.Check{ber.Context, 0, &d.SignedAttrs}},
		ber.Check{ber.Universal, ber.TagSequence, (*asnAlgorithmIdentifier)(&d.SignatureAlgorithm)},
		ber.Check{ber.Universal, ber.TagOctetString, ber.OctetString{&d.Signature}},
		ber.Optional{ber.Check{ber.Context, 1, &d.UnsignedAttrs}},
	}
}

full code

Build your own #

This approach gives us a easy way to write different DSL-s for marshaling data. You could imagine this being used for binary protocols or handling multiple formats with a single spec type.

General rule for implementing the spec structure:

Use a pointer to the type you want to capture.

For example, soap.TagSpec didn’t want to capture the input … hence it doesn’t contain pointers. soap.StringSpec wanted to capture a string and so the spec contained a *string. So, if you want to capture a *UserInfo then the spec type for it should contain **UserInfo.

PS: The examples here were meant to be as a proof of concepts. You really should handle errors properly, with meaningful messages and depending on your application your result will vary.

Conclusion #

Spec types give a nice way of handling different complicated formats at the cost of some performance. They are flexible in their capabilities and can be composed quite nicely.

As a final exercise you can try writing a nested handler:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21


// From:
func (response *AllColumnsResponse) Spec() soap.Spec {
	return soap.Tag("Envelope",
		soap.Tag("Body",
			soap.Tag("GetAllColumnsResponse",
				soap.Tag("GetAllColumnsResult",
					soap.Tag("ListColumnGroup1",
						soap.TagList("columns", &response.Columns),
					),
				),
			),
		),
	)
}

// To:
func (response *AllColumnsResponse) Spec() soap.Spec {
	return soap.Nested("Envelope>Body>GetAllColumnsResponse>GetAllColumnsResult>ListColumnGroup1")(
		soap.TagList("columns", &response.Columns),
	)
}
